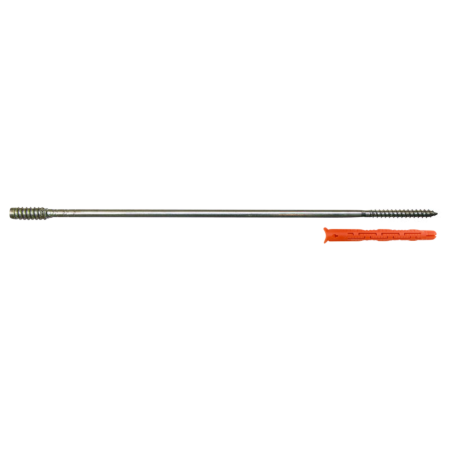

Facafix XL 80 ZnNi 700SST

  • Nylon polyamide PA6, impervious to ageing and tensile relaxation
  • Coating 700 hr Salt Spray Test, galvanised with optimum corrosion resistance
  • Flexible collar, perfect positioning of the plug for push-through and offset assembly
  • Rapid and efficient alignment
  • Optimized screw threads giometry
  • Optimal ventilated façade
  • Tension-free assembly
  • Tensile and pressure loads - necessary when under wind load
Description

Mocht u nog niet eerder gewerkt hebben met onze facafixen raden wij u aan om tijdens de offerte of bestelling uw contactgegevens zo volledig mogelijk in te vullen. Wij zullen indien nodig enkele aanvullende vragen stellen zodat wij u altijd de juiste afmeting en hoeveelheid adviseren.

Article info
Grouped product items
Product description Packaging Packed per Quantity Price Per
FACAFIX 6,5X345
  • 8282117915
  • Diameter (mm) 7 Length (mm) 275 Diameter plug (mm) 10 Plug length (mm) 79 Connection Hex 5 Boordiameter (mm) 10
  • 8282117915
  • FACAFIX 6,5X345
Box
50
FACAFIX 6,5X345
  • 8282117916
  • Diameter (mm) 7 Length (mm) 300 Diameter plug (mm) 10 Plug length (mm) 79 Connection Hex 5 Boordiameter (mm) 10
  • 8282117916
  • FACAFIX 6,5X345
Box
50
FACAFIX 6,5X345
  • 8282117917
  • Diameter (mm) 7 Length (mm) 325 Diameter plug (mm) 10 Plug length (mm) 79 Connection Hex 5 Boordiameter (mm) 10
  • 8282117917
  • FACAFIX 6,5X345
Box
50
FACAFIX 6,5X345
  • 8282117918
  • Diameter (mm) 7 Length (mm) 350 Diameter plug (mm) 10 Plug length (mm) 79 Connection Hex 5 Boordiameter (mm) 10
  • 8282117918
  • FACAFIX 6,5X345
Box
50
FACAFIX 6,5X345
  • 8282117919
  • Diameter (mm) 7 Length (mm) 375 Diameter plug (mm) 10 Plug length (mm) 79 Connection Hex 5 Boordiameter (mm) 10
  • 8282117919
  • FACAFIX 6,5X345
Box
50
FACAFIX 6,5X345
  • 8282117920
  • Diameter (mm) 7 Length (mm) 400 Diameter plug (mm) 10 Plug length (mm) 79 Connection Hex 5 Boordiameter (mm) 10
  • 8282117920
  • FACAFIX 6,5X345
Box
50
FACAFIX 6,5X345
  • 8282117921
  • Diameter (mm) 7 Length (mm) 425 Diameter plug (mm) 10 Plug length (mm) 79 Connection Hex 5 Boordiameter (mm) 10
  • 8282117921
  • FACAFIX 6,5X345
Box
50
FACAFIX 6,5X345
  • 8282117922
  • Diameter (mm) 7 Length (mm) 450 Diameter plug (mm) 10 Plug length (mm) 79 Connection Hex 5 Boordiameter (mm) 10
  • 8282117922
  • FACAFIX 6,5X345
Box
50
Product info
  • Push-through mounting, Remote mounting, Screw mounting, Tension-free mounting, SDS drilling, Diamond-ground drills
  • Fitting of a self-supporting wooden structure in front of an one-piece insulation shield
  • Nylon PA6|Zinc-Nickel 700 hr Salt Spray Test (SST)
  • Concrete, Full ceramic brick - façade stone, Full sand-lime brick - silicate stone, Insulated concrete panels
  • Aerated concrete, Ceramic hollow bricks - quick-build brick, Hollowcore floor slabs - composite floor slabs, Poriso
  • Screw has a special zinc-nickel coating 700 hr SST
